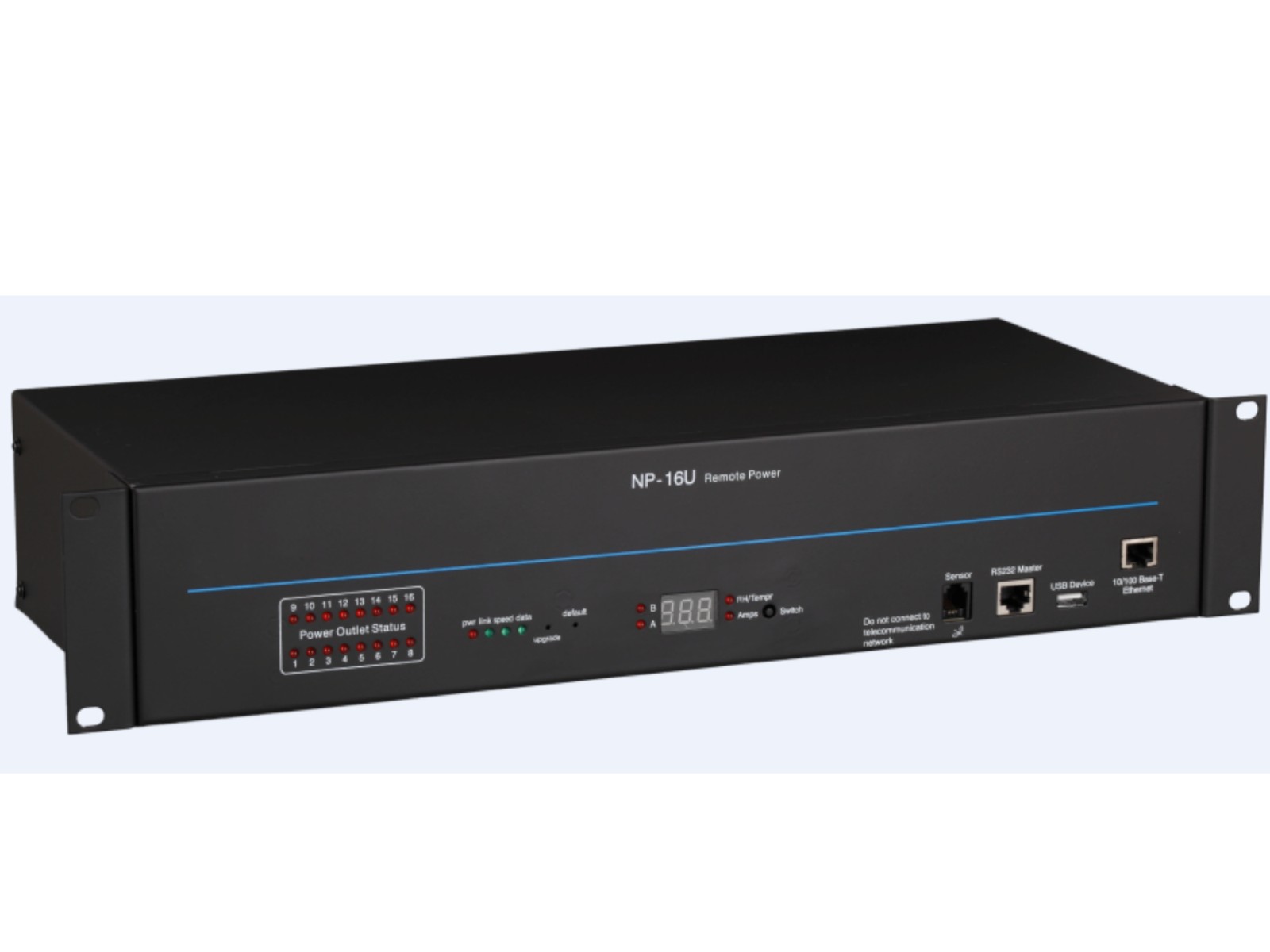

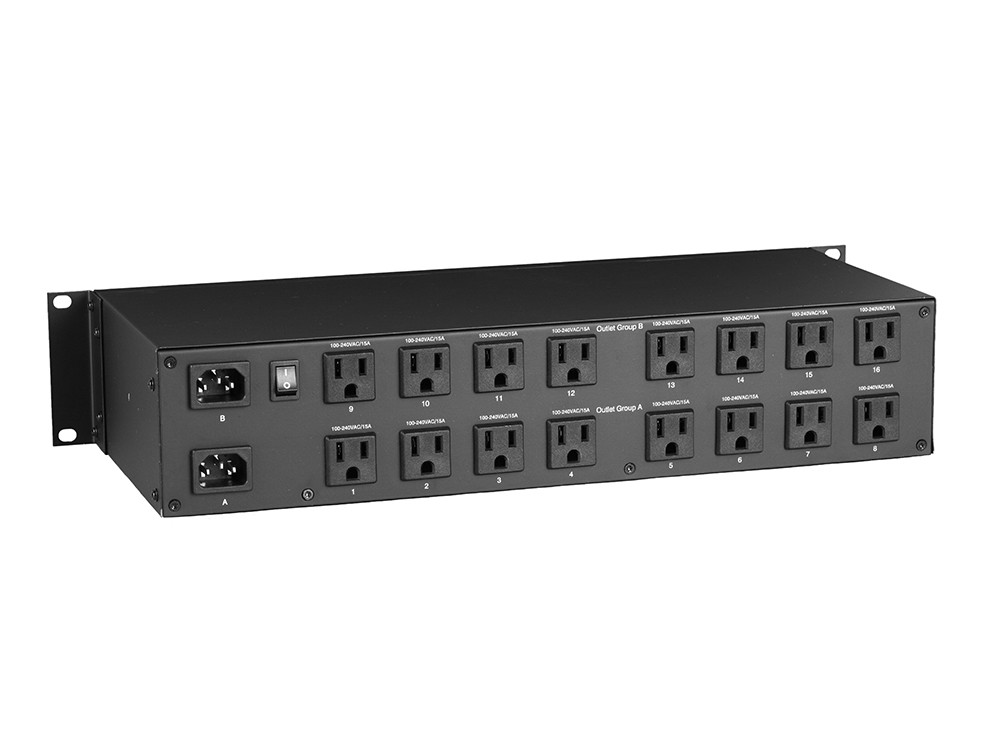

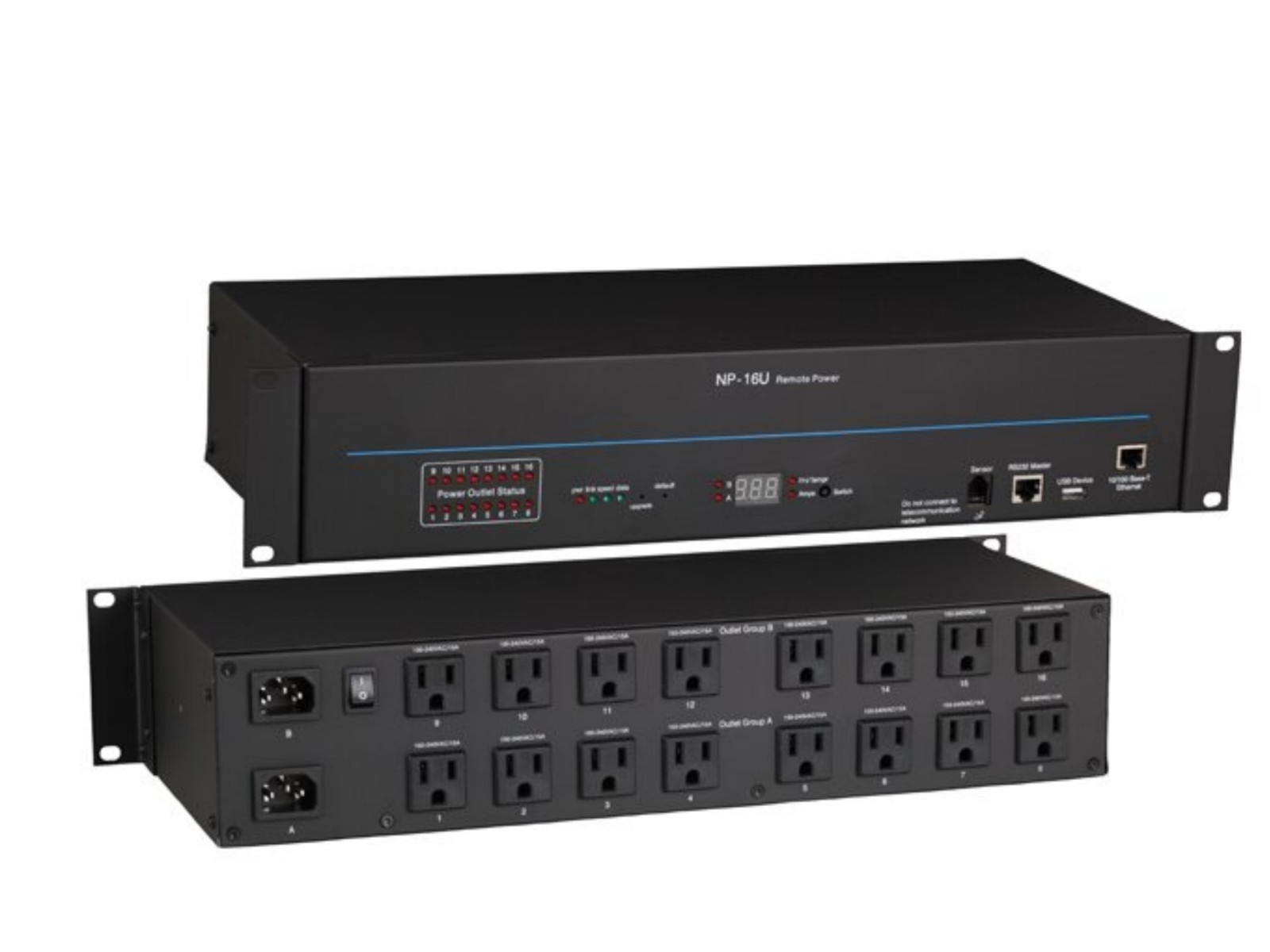

NP-16U
NP-16U PDU provides intelligent remote power management operations, allowed by diversified ways to access and control including network protocols and local etc control mode,multistage system administrative privileges, network security account can be simple, rapid and reliable implementation of the power control，parameter monitoring and status of the equipment real-time detection.
One RS232 console port & one 10M/100M-T RJ45 Ethernet port, support AUTO-MDIX.
Support DHCP or static IP configure
Integrated SNMP agent and Trap notification message capability
POP3/SMTP for sending and receiving control commands or user data
Support password protecting user management，8 user at most, and the port owner and access permission could be set
| Features |
|
| Functions |
|
| Electrical parameter | |
| Enter Plug | 1 |
| Supply Plug | NEMA5-15P |
| Equipment end | IEC60320-C14 |
| Outlets | (2)NAME5-15R |
| Input Current | 15 Amp |
| Input Voltage | 110 VAC |
| Console Port | Baud rate:115200; 8 data bits ; No parity;1 stop bit, no hardware handshaking |
| Ethernet | 10/100 Base-T, support AUTO-MDIX |
| Network Protocol | ICMP, IP, TCP/UDP, DHCP, Telnet, DNS, POP3/SMTP, SNMP, HTTP |
| Display | 6LEDs |
| Other parameter | |
| Chassis | W: 0.59＂ (15mm) |
| D: 0.665＂ (17mm) | |
| H: 1.75＂ (44mm) | |
| Operating Temperature | 0°C – 50°C |
| Storage Temperature | -29°C – 60°C |
| Humidity | 10-90% RH |
