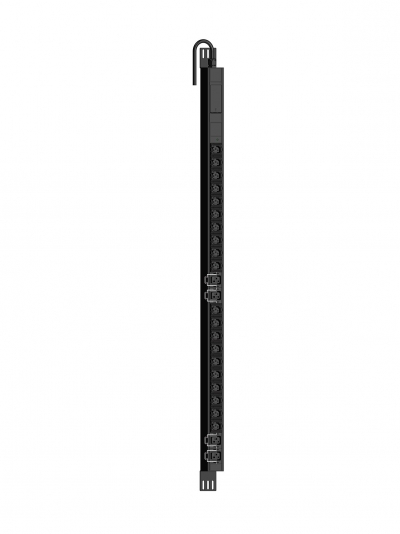

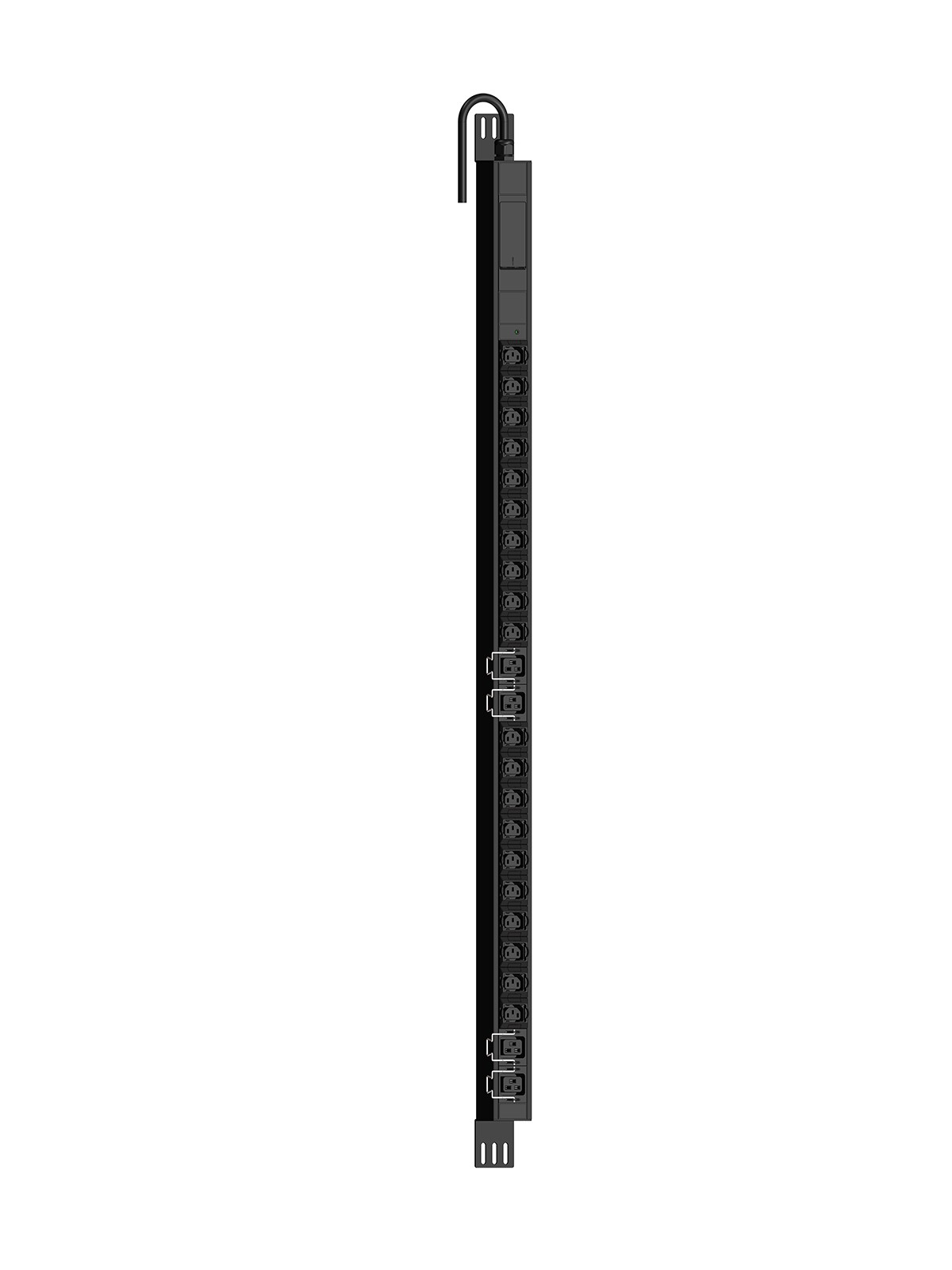

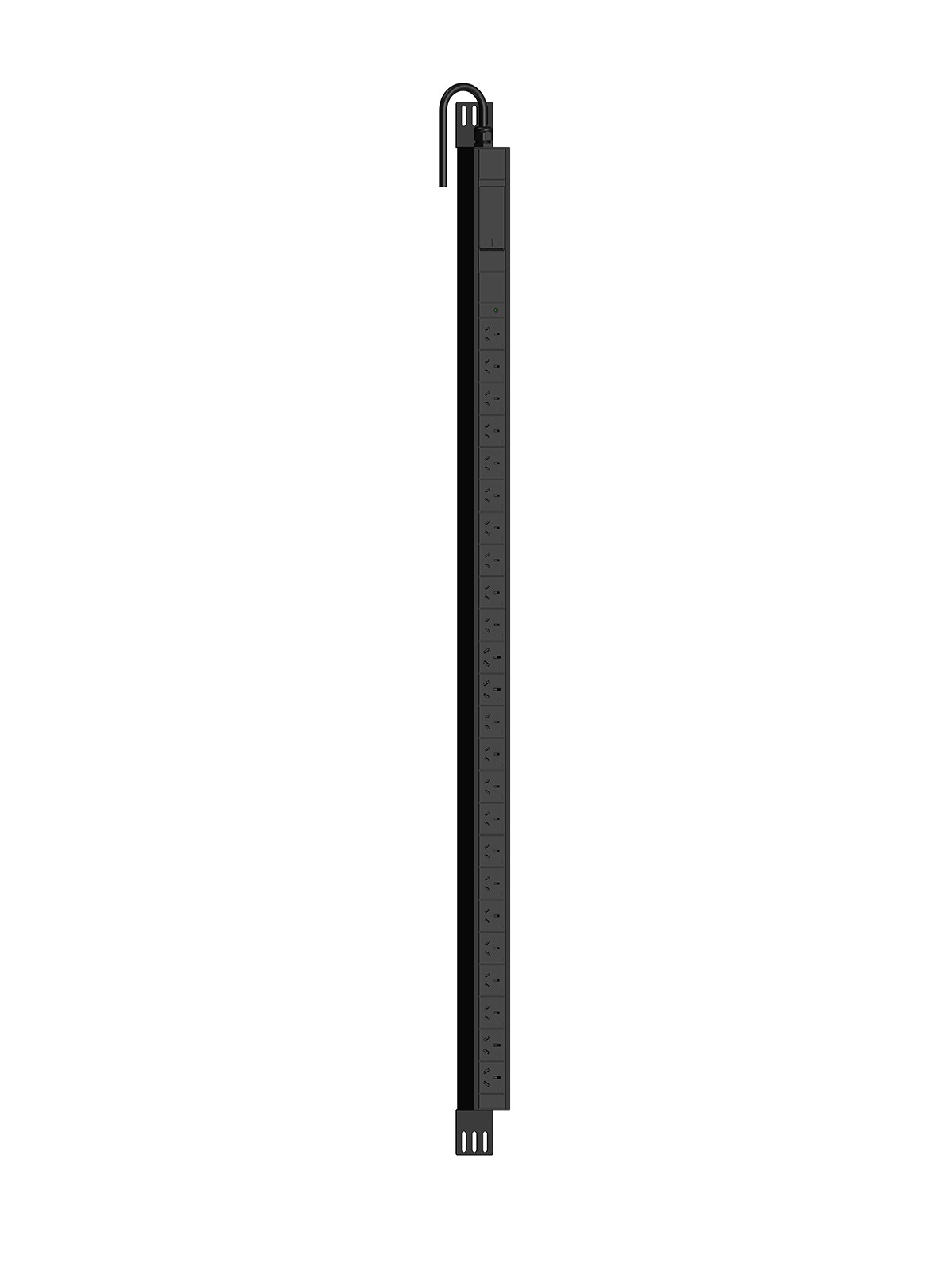

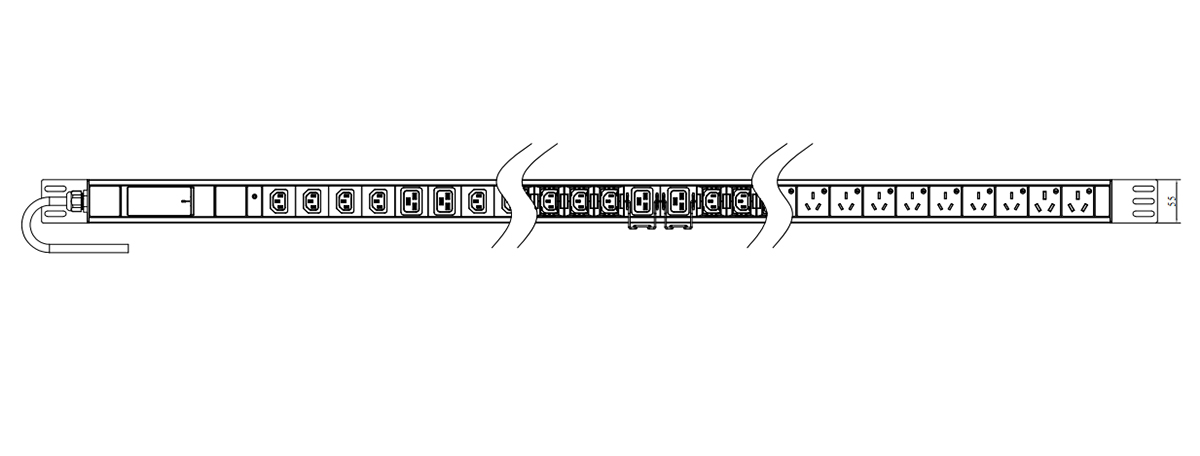

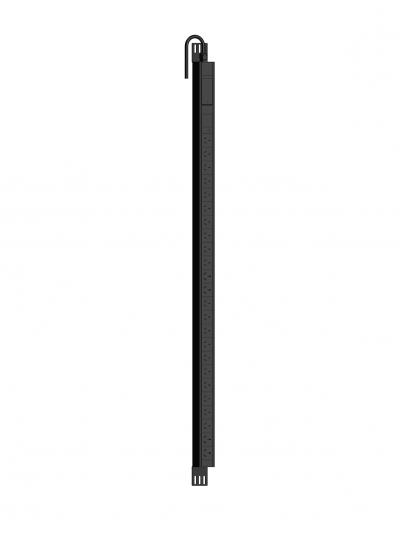

Basic Series PDU 16A
Product series: Basic PDU 16A
- Outlet Type: IEC 60320-C13, IEC 60302-C19, IEC 60302-C13 Lockable, IEC 60302-C19 Lockable, GB1002-10A, GB1002-16A
- Outlet Quantity: 8-33 units
- Input: IEC 60309 & Cable
- Installation: Vertical Reverse Installation
| No. | Item | Description | |
| 1 | Product Series | Basic 16A | |
| 2 | Outlet Type | IEC 60320-C13, IEC 60302-C19, IEC 60302-C13 Lockable, IEC 60302-C19 Lockable, GB1002-10A, GB1002-16A | |
| 3 | Outlet Quantity | 8-33 units | |
| 4 | Power Input Type | Industrial connector | |
| 5 | Installation | Vertical Reverse Installation | |
| 6 | Input Plug | IEC60309 IP44 16A/250VAC 2P+E | |
| 7 | Housing Color | Black | |
| 8 | Input Cable Specifications | 3×2.5mm² RVV -2m long cable(black) | |
| 9 | Factory Accessories | Industrial connector female | |
| 10 | Product Marking | Product name | rPDU |
| Rated voltage | 220V AC | ||
| Rated current | 16A | ||
| MAX current | 16A | ||
| Safety | N | ||
| Maker | SQ-ELECTRONICS | ||
| Model | Input voltage | Rated current | Input plug | Output |
| BP24-E2A16001 | 100-240V | 16A | IEC 60309 16A 2P+E | C13*20+C19*4 |
| BP24-E2A16002 | 100-240V | 16A | IEC 60309 16A 2P+E | C13*18+C19*6 |
| BP24-E2A16003 | 100-240V | 16A | IEC 60309 16A 2P+E | C13 Lockable*20+C19 Lockable*4 |
| BP24-E2A16004 | 100-240V | 16A | IEC 60309 16A 2P+E | C13 Lockable*18+C19 Lockable*6 |
| BP24-G2A16001 | 100-240V | 16A | IEC 60309 16A 2P+E | GB10A*20+GB16A*4 |
| BP24-G2A16002 | 100-240V | 16A | IEC 60309 16A 2P+E | GB10A*18+GB16A*6 |
