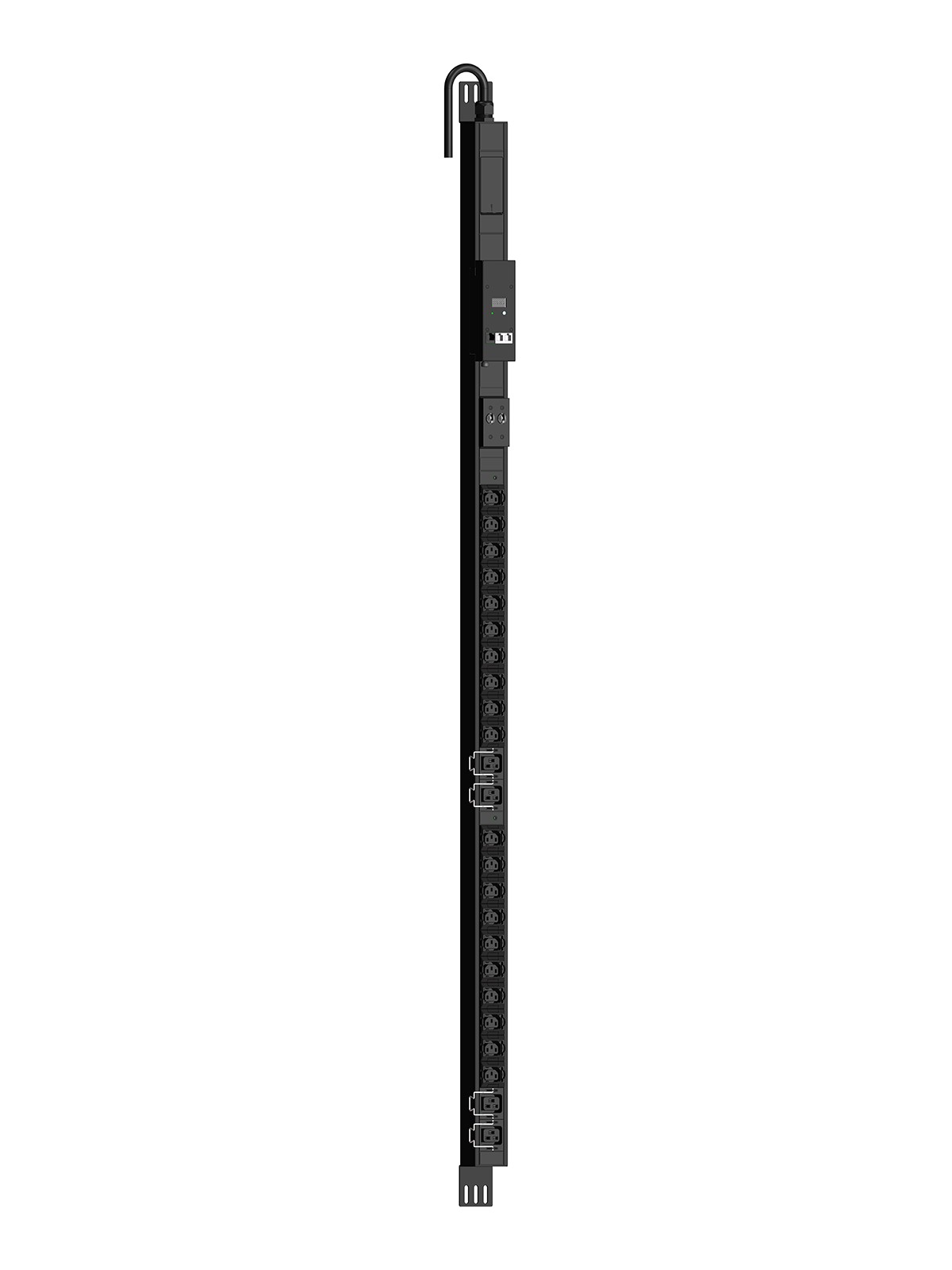

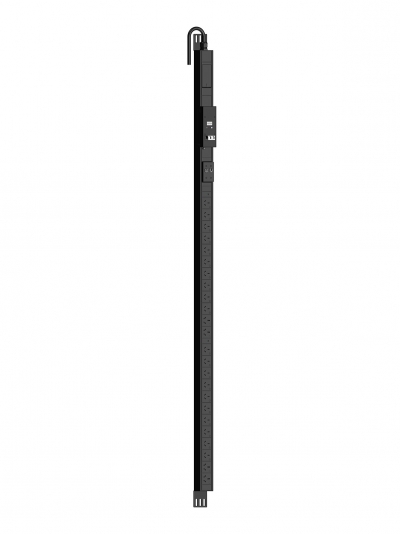

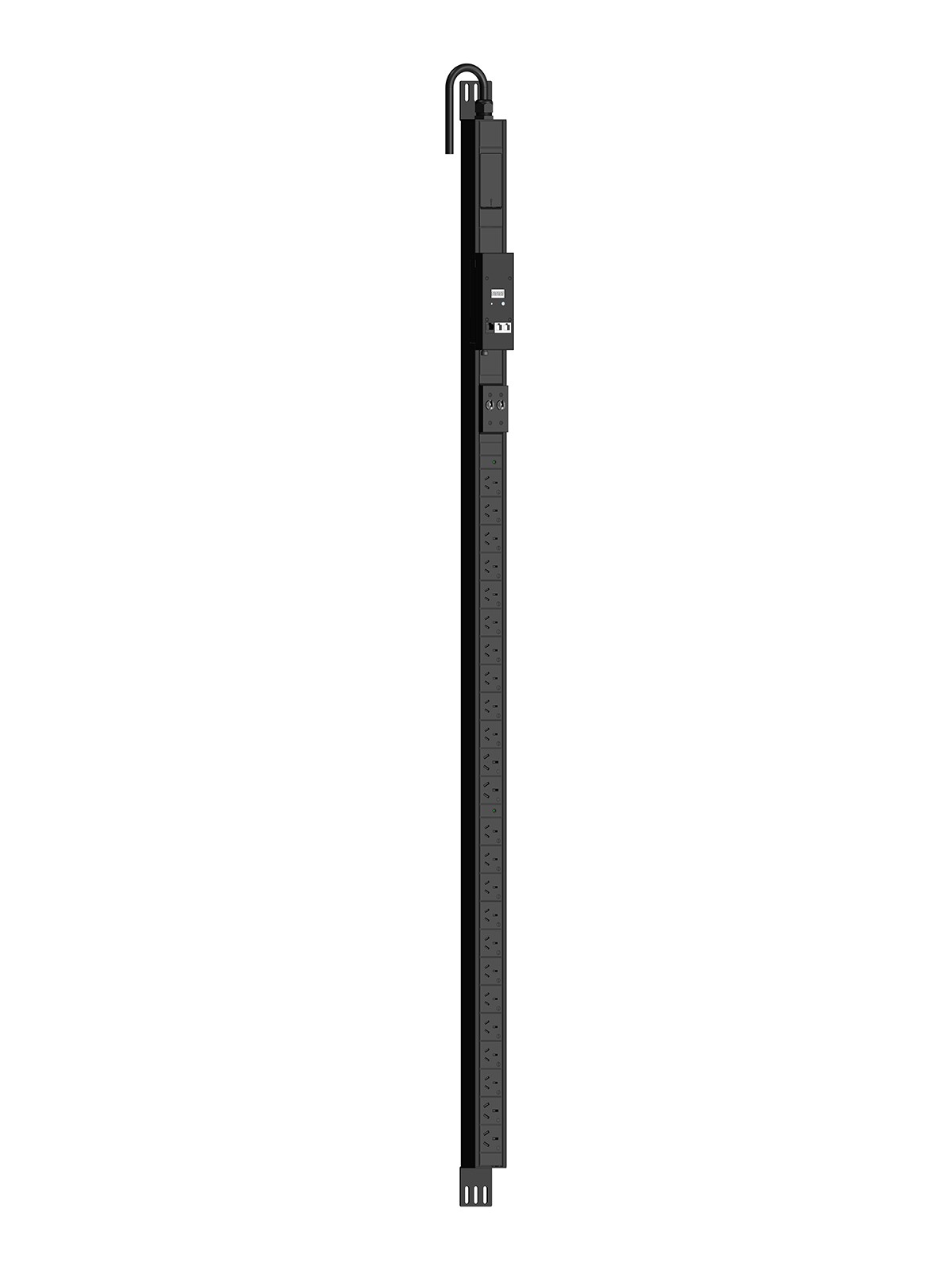

Monitor PDU RAE/RYE+Circuit Breaker
- Product series: Monitor PDU RAE/RYE+Circuit Breaker
- Outlet Type: IEC 60320-C13, IEC 60302-C19, IEC 60302-C13 Lockable, IEC 60302-C19 Lockable, GB1002-10A, GB1002-16A
- Outlet Quantity: 8-27 units
- Protect module: Circuit breaker 32A/63A 1P/2P
- Monitoring instructions: LCD display the current, supports hot plugging, and Overload sound and light alarm. Support ModBus Protocol, 485 Communication Interface
- Input: IEC 60309 & Cable
- Installation: Vertical Reverse Installation
| No. | Item | Description | |
| 1 | Product Series | Monitor PDU RAE/RYE+Circuit Breaker | |
| 2 | Outlet Type | EC 60320-C13, IEC 60302-C19, IEC 60302-C13 Lockable, IEC 60302-C19 Lockable, GB1002-10A, GB1002-16A | |
| 3 | Outlet Quantity | 8-27 units | |
| 4 | Power Input Type | Industrial connector | |
| 5 | Installation | Vertical Reverse Installation | |
| 6 | Input Plug | EC60309 IP44 32A/250VAC 2P+E, or IEC60309 IP44 63A/250VAC 2P+E, or IEC60309 IP44 32A/400VAC 4P+E, or IEC60309 IP44 63A/400VAC 4P+E | |
| 7 | Monitor Instructions | LCD display the current, supports hot plugging, and overload sound and light alarm. Support ModBus Protocol, 485 Communication Interface | |
| 8 | Protect Funcation | Circuit breaker 32A/63A 1P/2P | |
| 9 | Housing Color | Black | |
| 10 | Input Cable Specifications | 3×6mm², or 3×10mm², or 5×6mm², or 5×10mm² RVV -2m long cable(black) | |
| 11 | Factory Accessories | Industrial connector female | |
| 12 | Product Marking | Product name | rPDU |
| Rated voltage | 220V AC / 380V AC | ||
| Rated current | 32A/63A | ||
| MAX current | 32A/63A | ||
| Safety | N | ||
| Maker | SQ-ELECTRONICS | ||
| Model | Function module | Input voltage | Rated current | Input plug | Output socket | |||
| MP24-E2A32F01 | CB | RAE | 100-240V | 32A | IEC 60309 32A 2P+E | C13*20+C19*4 | ||
| MP24-E2A32F02 | CB | RAE | 100-240V | 32A | IEC 60309 32A 2P+E | C13*18+C19*6 | ||
| MP24-E2A32F03 | CB | RAE | 100-240V | 32A | IEC 60309 32A 2P+E | C13 Lockable*20+C19 Lockable*4 | ||
| MP24-E2A32F04 | CB | RAE | 100-240V | 32A | IEC 60309 32A 2P+E | C13 Lockable*18+C19 Lockable*6 | ||
| MP24-G2A32F01 | CB | RAE | 100-240V | 32A | IEC 60309 32A 2P+E | GB10A*20+GB16A*4 | ||
| MP24-G2A32F02 | CB | RAE | 100-240V | 32A | IEC 60309 32A 2P+E | GB10A*18+GB16A*6 | ||
| MP24-E2Y32F01 | CB | RYE | 200-415V | 32A | IEC 60309 32A 3P+N+E | C13*20+C19*4 | ||
| MP24-E2Y32F02 | CB | RYE | 200-415V | 32A | IEC 60309 32A 3P+N+E | C13*18+C19*6 | ||
| MP24-E2Y32F03 | CB | RYE | 200-415V | 32A | IEC 60309 32A 3P+N+E | C13 Lockable*20+C19 Lockable*4 | ||
| MP24-E2Y32F04 | CB | RYE | 200-415V | 32A | IEC 60309 32A 3P+N+E | C13 Lockable*18+C19 Lockable*6 | ||
| MP24-G2Y32F01 | CB | RYE | 200-415V | 32A | IEC 60309 32A 3P+N+E | GB10A*20+GB16A*4 | ||
| MP24-G2Y32F02 | CB | RYE | 200-415V | 32A | IEC 60309 32A 3P+N+E | GB10A*18+GB16A*6 | ||
| MP24-E2A63F01 | CB | RAE | 100-240V | 63A | IEC 60309 63A 2P+E | C13*20+C19*4 | ||
| MP24-E2A63F02 | CB | RAE | 100-240V | 63A | IEC 60309 63A 2P+E | C13*18+C19*6 | ||
| MP24-E2A63F03 | CB | RAE | 100-240V | 63A | IEC 60309 63A 2P+E | C13 Lockable*20+C19 Lockable*4 | ||
| MP24-E2A63F04 | CB | RAE | 100-240V | 63A | IEC 60309 63A 2P+E | C13 Lockable*18+C19 Lockable*6 | ||
| MP24-G2A63F01 | CB | RAE | 100-240V | 63A | IEC 60309 63A 2P+E | GB10A*20+GB16A*4 | ||
| MP24-G2A63F02 | CB | RAE | 100-240V | 63A | IEC 60309 63A 2P+E | GB10A*18+GB16A*6 | ||
| MP24-E2Y63F01 | CB | RYE | 200-415V | 63A | IEC 60309 63A 2P+E | C13*20+C19*4 | ||
| MP24-E2Y63F02 | CB | RYE | 200-415V | 63A | IEC 60309 63A 2P+E | C13*18+C19*6 | ||
| MP24-E2Y63F03 | CB | RYE | 200-415V | 63A | IEC 60309 63A 2P+E | C13 Lockable*20+C19 Lockable*4 | ||
| MP24-E2Y63F04 | CB | RYE | 200-415V | 63A | IEC 60309 63A 2P+E | C13 Lockable*18+C19 Lockable*6 | ||
| MP24-G2Y63F01 | CB | RYE | 200-415V | 63A | IEC 60309 63A 2P+E | GB10A*20+GB16A*4 | ||
| MP24-G2Y63F02 | CB | RYE | 200-415V | 63A | IEC 60309 63A 2P+E | GB10A*18+GB16A*6 | ||
