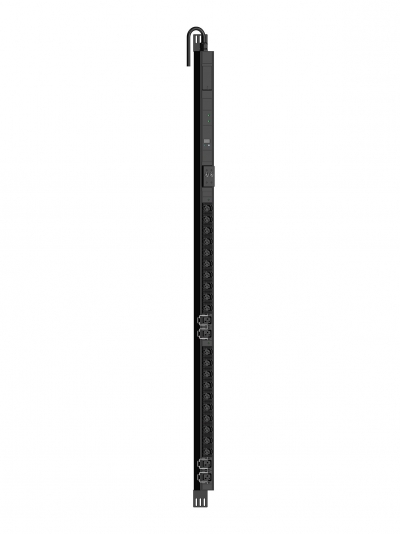

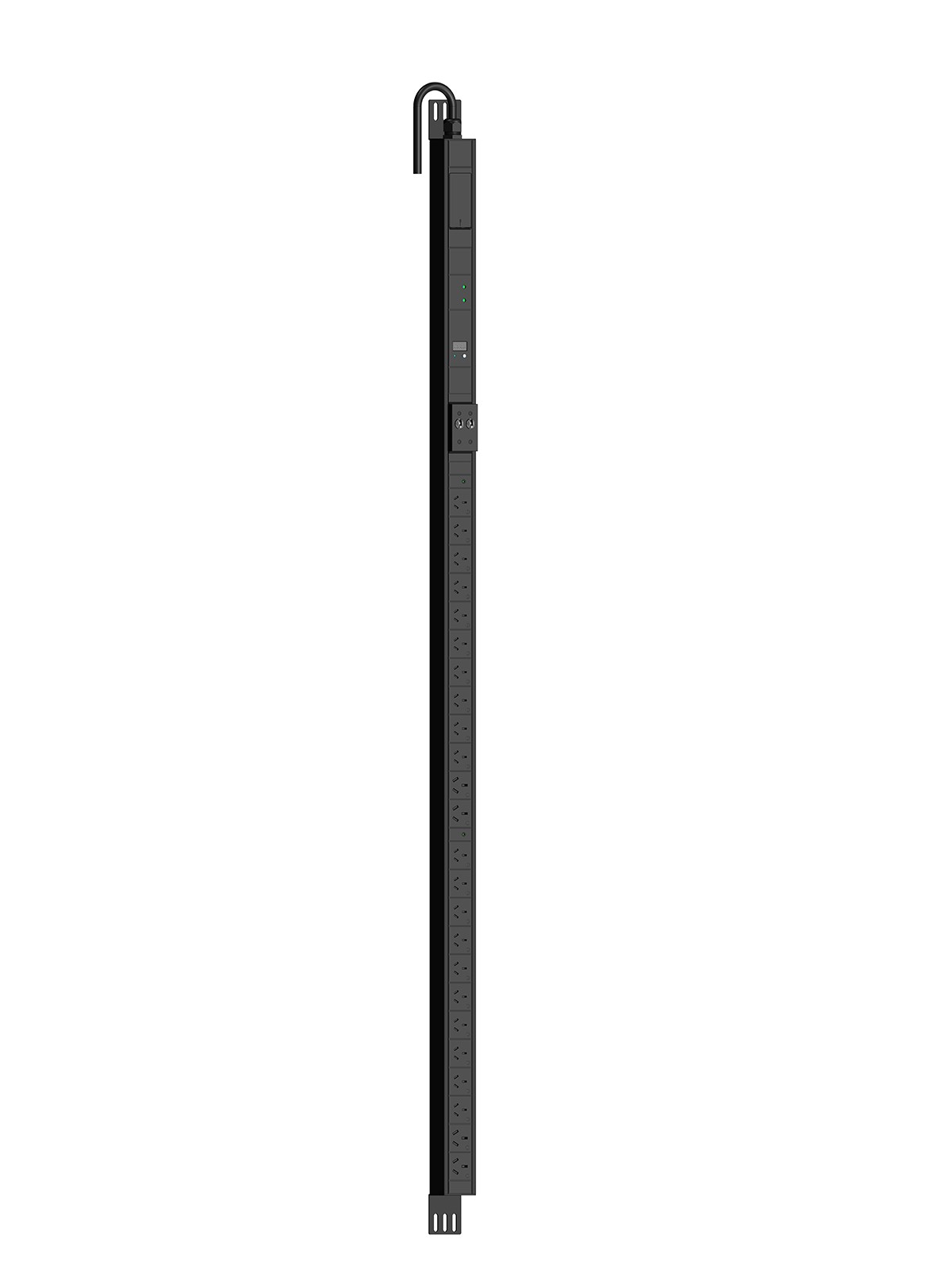

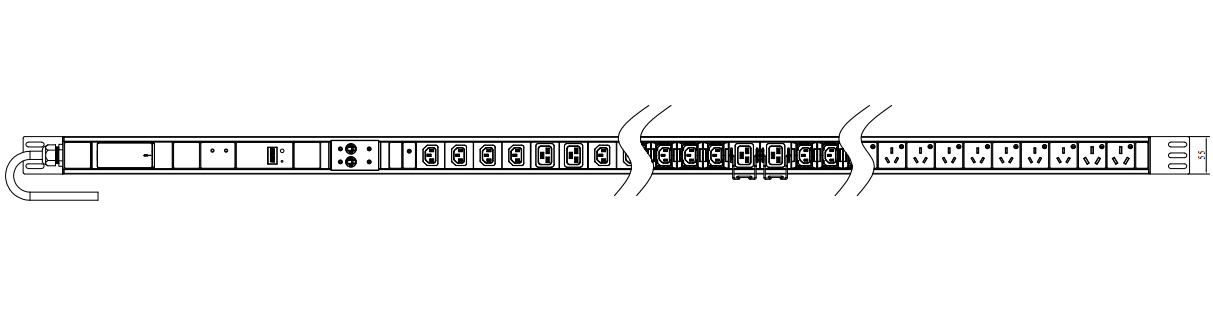

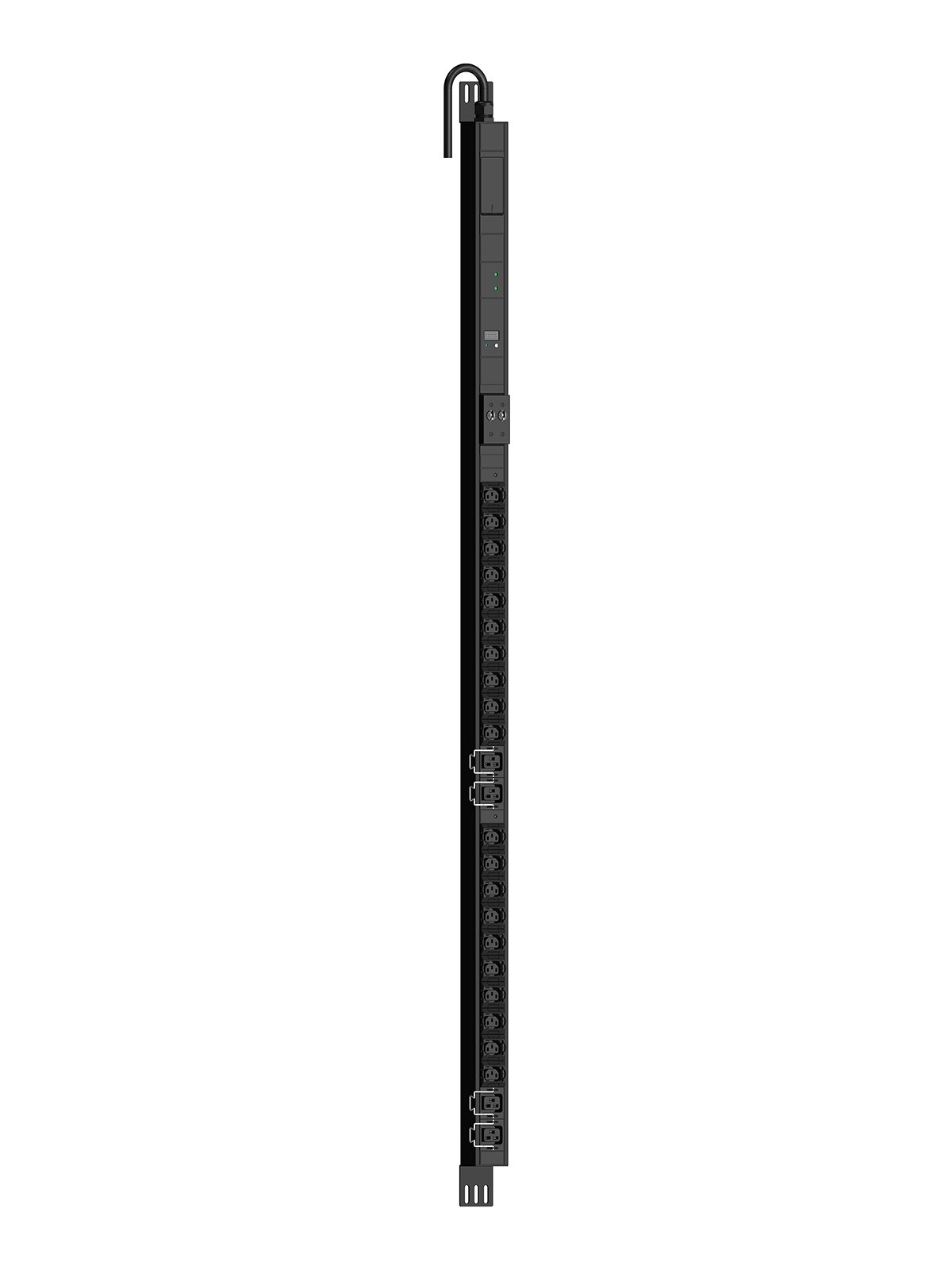

Monitor PDU MAE/MYE+Circuit Breaker+Surge Protection
- Product series: Monitor PDU MAE/MYE+Circuit Breaker+Surge Protection
- Outlet Type: IEC 60320-C13, IEC 60302-C19, IEC 60302-C13 Lockable, IEC 60302-C19 Lockable, GB1002-10A, GB1002-16A
- Outlet Quantity: 8-26 units
- Protect module: Circuit breaker 32A/63A 1P/2P
- Monitoring instructions: LCD display the current, Overload sound and light alarm.
- Surge Protection: Yes
- Input: IEC 60309 & Cable
- Installation: Vertical Reverse Installation
| No. | Item | Description | |
| 1 | Product Series | MMonitor PDU RAE/RYE+Circuit Breaker+Surge Protection | |
| 2 | Outlet Type | IEC 60320-C13, IEC 60302-C19, IEC 60302-C13 Lockable, IEC 60302-C19 Lockable, GB1002-10A, GB1002-16A | |
| 3 | Outlet Quantity | 8-26 units | |
| 4 | Power Input Type | Industrial connector | |
| 5 | Installation | Vertical Reverse Installation | |
| 6 | Input Plug | IEC60309 IP44 32A/250VAC 2P+E, or IEC60309 IP44 63A/250VAC 2P+E, or IEC60309 IP44 32A/400VAC 4P+E, or IEC60309 IP44 63A/400VAC 4P+E | |
| 7 | Monitor Instructions | LCD display the current, overload sound and light alarm. | |
| 8 | Surge Protection | Yes | |
| 9 | Protect Funcation | Circuit breaker 32A/63A 1P/2P | |
| 10 | Housing Color | Black | |
| 11 | Input Cable Specifications | 3×6mm², or 3×10mm², or 5×6mm², or 5×10mm² RVV -2m long cable(black) | |
| 12 | Factory Accessories | Industrial connector female | |
| 13 | Product Marking | Product name | rPDU |
| Rated voltage | 220V AC / 380V AC | ||
| Rated current | 32A/63A | ||
| MAX current | 32A/63A | ||
| Safety | N | ||
| Maker | SQ-ELECTRONICS | ||
| Model | Function module | Input voltage | Rated current | Input plug | Output socket | ||||
| MP24-E2A32G05 | CB | MAE | Surge Protection | 100-240V | 32A | IEC 60309 32A 2P+E | C13*20+C19*4 | ||
| MP24-E2A32G06 | CB | MAE | Surge Protection | 100-240V | 32A | IEC 60309 32A 2P+E | C13*18+C19*6 | ||
| MP24-E2A32G07 | CB | MAE | Surge Protection | 100-240V | 32A | IEC 60309 32A 2P+E | Anti-slip lock C13*20+ Anti-slip lock C19*4 | ||
| MP24-E2A32G08 | CB | MAE | Surge Protection | 100-240V | 32A | IEC 60309 32A 2P+E | Anti-slip lock C13*8+ Anti-slip lock C19*6 | ||
| MP24-G2A32G03 | CB | MAE | Surge Protection | 100-240V | 32A | IEC 60309 32A 2P+E | GB10A*20+GB16A*4 | ||
| MP24-G2A32G04 | CB | MAE | Surge Protection | 100-240V | 32A | IEC 60309 32A 2P+E | GB10A*18+GB16A*6 | ||
| MP24-E2Y32G05 | CB | MYE | Surge Protection | 200-415V | 32A | IEC 60309 32A 3P+N+E | C13*20+C19*4 | ||
| MP24-E2Y32G06 | CB | MYE | Surge Protection | 200-415V | 32A | IEC 60309 32A 3P+N+E | C13*18+C19*6 | ||
| MP24-E2Y32G07 | CB | MYE | Surge Protection | 200-415V | 32A | IEC 60309 32A 3P+N+E | Anti-slip lock C13*20+ Anti-slip lock C19*4 | ||
| MP24-E2Y32G08 | CB | MYE | Surge Protection | 200-415V | 32A | IEC 60309 32A 3P+N+E | Anti-slip lock C13*8+ Anti-slip lock C19*6 | ||
| MP24-G2Y32G03 | CB | MYE | Surge Protection | 200-415V | 32A | IEC 60309 32A 3P+N+E | GB10A*20+GB16A*4 | ||
| MP24-G2Y32G04 | CB | MYE | Surge Protection | 200-415V | 32A | IEC 60309 32A 3P+N+E | GB10A*18+GB16A*6 | ||
| MP24-E2A63G05 | CB | MAE | Surge Protection | 100-240V | 63A | IEC 60309 63A 2P+E | C13*20+C19*4 | ||
| MP24-E2A63G06 | CB | MAE | Surge Protection | 100-240V | 63A | IEC 60309 63A 2P+E | C13*18+C19*6 | ||
| MP24-E2A63G07 | CB | MAE | Surge Protection | 100-240V | 63A | IEC 60309 63A 2P+E | Anti-slip lock C13*20+ Anti-slip lock C19*4 | ||
| MP24-E2A63G08 | CB | MAE | Surge Protection | 100-240V | 63A | IEC 60309 63A 2P+E | Anti-slip lock C13*8+ Anti-slip lock C19*6 | ||
| MP24-G2A63G03 | CB | MAE | Surge Protection | 100-240V | 63A | IEC 60309 63A 2P+E | GB10A*20+GB16A*4 | ||
| MP24-G2A63G04 | CB | MAE | Surge Protection | 100-240V | 63A | IEC 60309 63A 2P+E | GB10A*18+GB16A*6 | ||
| MP24-E2Y63G05 | CB | MYE | Surge Protection | 200-415V | 63A | IEC 60309 63A 3P+N+E | C13*20+C19*4 | ||
| MP24-E2Y63G06 | CB | MYE | Surge Protection | 200-415V | 63A | IEC 60309 63A 3P+N+E | C13*18+C19*6 | ||
| MP24-E2Y63G07 | CB | MYE | Surge Protection | 200-415V | 63A | IEC 60309 63A 3P+N+E | Anti-slip lock C13*20+ Anti-slip lock C19*4 | ||
| MP24-E2Y63G08 | CB | MYE | Surge Protection | 200-415V | 63A | IEC 60309 63A 3P+N+E | Anti-slip lock C13*8+ Anti-slip lock C19*6 | ||
| MP24-G2Y63G03 | CB | MYE | Surge Protection | 200-415V | 63A | IEC 60309 63A 3P+N+E | GB10A*20+GB16A*4 | ||
| MP24-G2Y63G04 | CB | MYE | Surge Protection | 200-415V | 63A | IEC 60309 63A 3P+N+E | GB10A*18+GB16A*6 | ||
