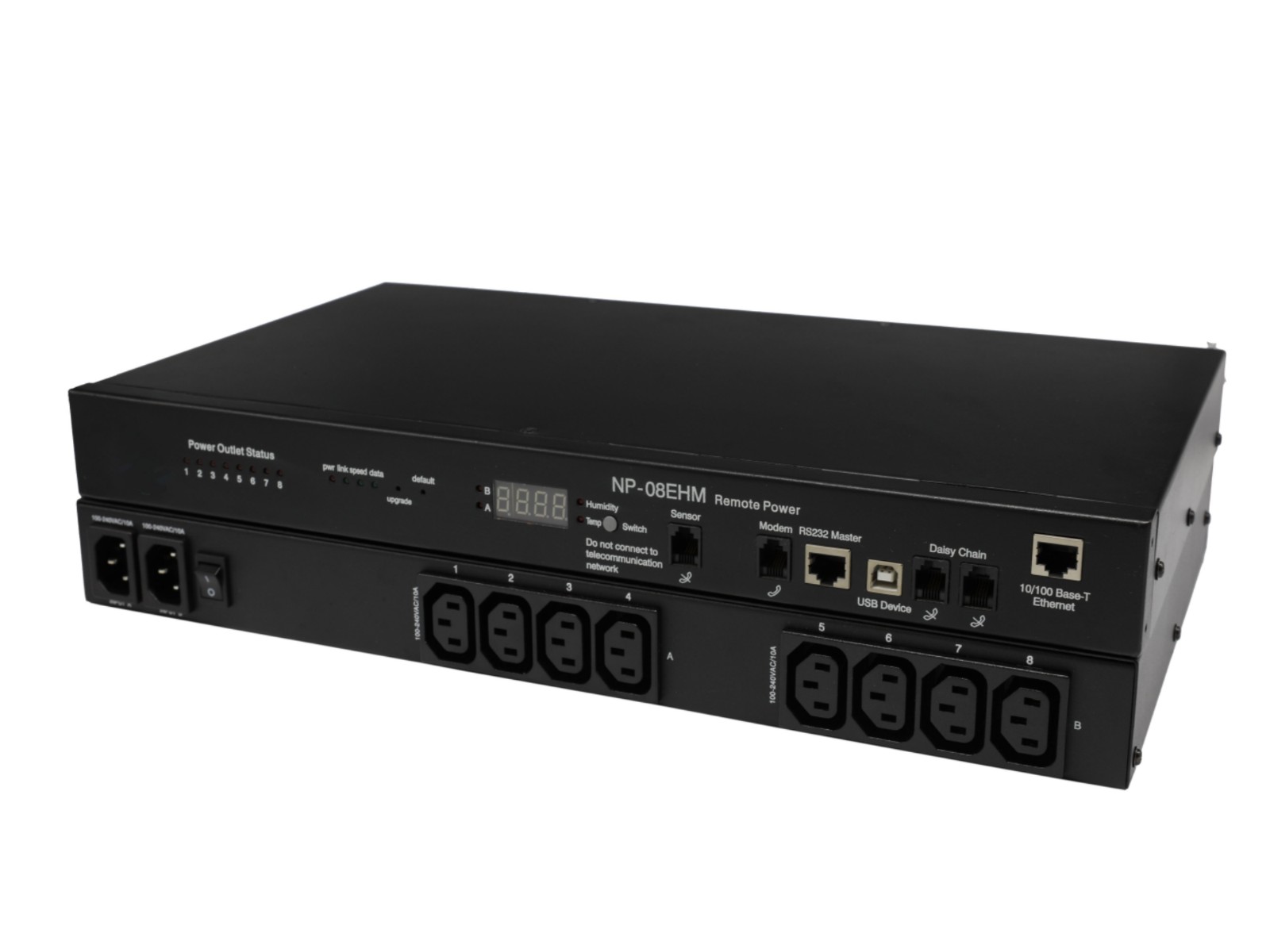

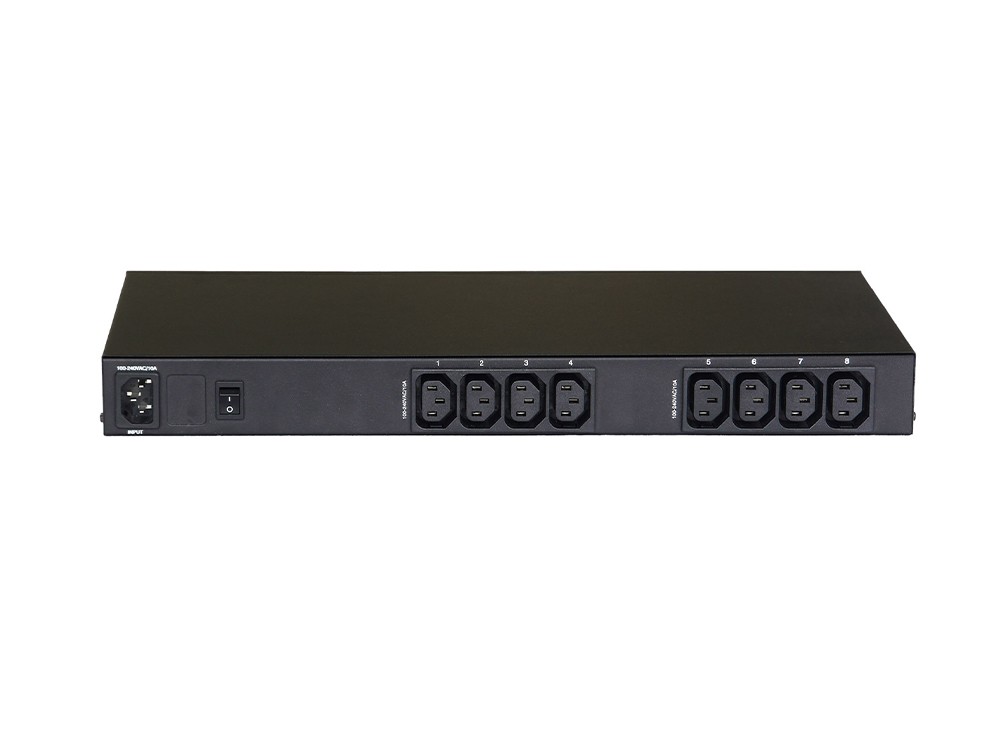

NP-08EHM

NP-08EHM PDU provides intelligent remote power management operations,allowed by diversified ways to access and control including network protocols and local etc control mode,multistage system administrative privileges, network security account can  be  simple,  rapid  and  reliable  implementation  of  the  power  control,parameter monitoring and status of the equipment real-time detection.

  • One RS232 console port & one 10M/100M-T RJ45 Ethernet port, support AUTO-MDIX.
  • Support DHCP or static IP configure
  • Integrated SNMP agent and Trap notification message capability
  • POP3/SMTP for sending and receiving control commands or user data
  • Support password protecting user management,8 user at most, and the port owner and access permission could be set
Features
  • One RS232 console port & one 10M/100M-T RJ45 Ethernet port, support AUTO-MDIX.
  • Support DHCP or static IP configure
  • Integrated SNMP agent and Trap notification message capability
  • POP3/SMTP for sending and receiving control commands or user data
  • Support password protecting user management,8 user at most, and the port owner and access permission could be set
  • Support 2 ports control,and could be customized
  • Support port name, power on status and owner setting
  • User's software upgrading is available
Functions
  • Web,Telnet,RS232,SNMP,Email management access
  • Local and remote current checking and display.
  • Current alarm threshold by locale, email, trap methods
  • Event timers/clock for each power outlet.
  • Switch and reboot each outlets
  • Port reservation for different permissions.
  • Auto-ping for each power outlet by ICMP ping package, and can be reboot.
  • Simple internet firewall, forbid remote access illegally
Electrical parameter
Enter Plug1
Supply PlugNEMA5-15P
Equipment endIEC60320-C14
Outlets(2)NAME5-15R
Input Current15 Amp
Input Voltage110 VAC
Console PortBaud rate:115200; 8 data bits ; No parity;1 stop bit, no hardware handshaking
Ethernet10/100 Base-T, support AUTO-MDIX
Network Protocol ICMP, IP, TCP/UDP, DHCP, Telnet, DNS, POP3/SMTP, SNMP, HTTP
Display6LEDs
Other parameter
 ChassisW: 0.59" (15mm)
D: 0.665" (17mm)
H: 1.75" (44mm)
Operating Temperature 0°C – 50°C
Storage Temperature -29°C – 60°C
Humidity 10-90% RH
