SMP-Y23302

  • Product Series: Monitor
  • Receptacle Type: IEC 60320-C13 (Lockable), IEC 60320-C19
  • Outlets: 24 Outlets- IEC 60320-C13 (Lockable)& 9 Outlets- IEC 60320-C19
  • Input: IEC 60309 & Cable
No. Item Basic description
1 Product Series Monitor
2 Receptacle Type IEC 60320-C13 (Lockable), IEC 60320-C19
3 Outlets 24 Outlets- IEC 60320-C13 (Lockable)& 9 Outlets- IEC 60320-C19
4 Input IEC 60309 & Cable
5 Installation Vertical
6 Input plug IEC60309 IP44 63A/230VAC 2P+E industrial connector
7 Monitor module LED current display ;Current overload alarm; Hot plug
8 Protect module N
9 Housing color Yellow
10 Specifications of input cable 5*4mm^2 ZA RVV-3m long cable(black)

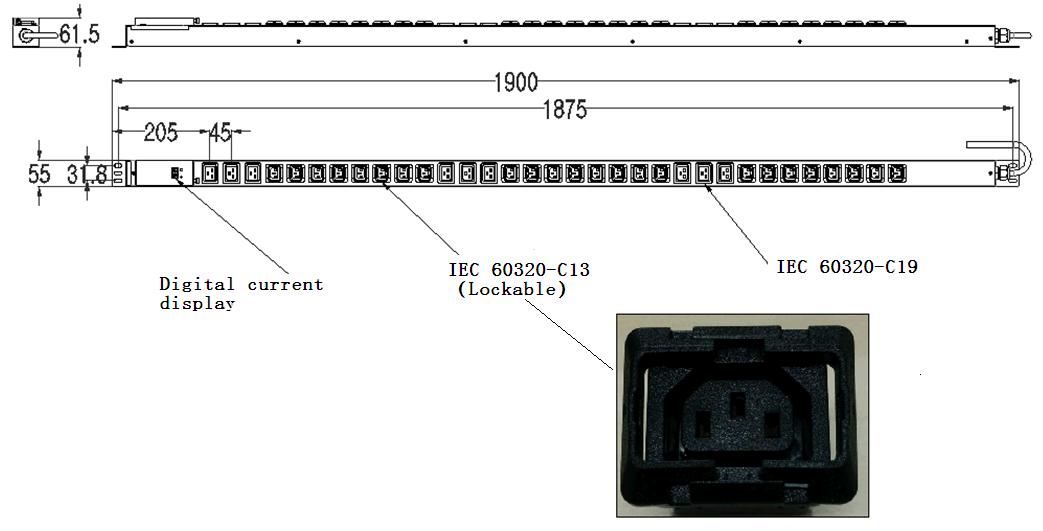

11 Product dimension Length x width x high =1900x55x61.5mm
12 Mounting hole center distance1875mm
13 Housing length 1900mm
14 Accessories Female IEC 60309
15 Product making Product name PDU
Model SQ33(24E9e)1C6DA1
Rated voltage 380V three phase AC
Rated current 32A each phase
MAX current 32A each phase
MAX power ∇
Safety N
LOGO ∇
Maker SQ-ELECTRONICS
