SMP-Y11601

  • Product Series: Monitor
  • Receptacle Type: Outputs-IEC 60320-C13
  • Outlets: Sixteen outlets-IEC 60320-C13(lockable)
  • Input: IEC 60309 & Cable
No. Item Basic description
1 Product Series Monitor
2 Receptacle Type IEC 60320-C13 (Lockable)
3 Outlets Sixteen outlets-IEC 60320-C13(lockable)
4 Input IEC 60309 & Cable
5 Installation Vertical
6 Input plug IEC60309 IP44 16A/230VAC 2P+E industrial connector
7 Monitor module LED current display ;Current overload alarm; Hot plug
8 Protect module N
9 Housing color Black
10 Specifications of input cable 3*4mm^2 ZA RVV -3m long cable(black)

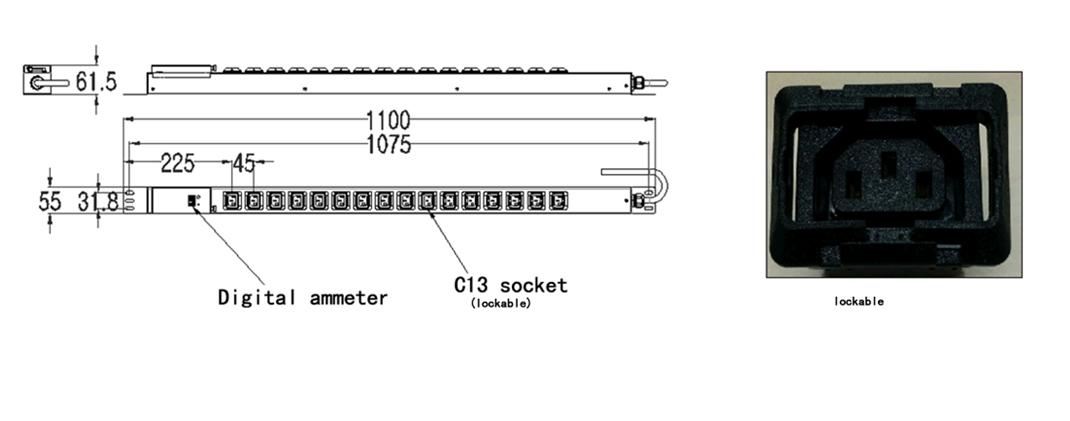

11 Product dimension Length x width x high =1100 x 55x 61.5mm
12 Mounting hole center distance1075mm
13 Housing length 1100mm
14 Accessories Female IEC60309
15 Product making Product name Rack PDU
Model SQ16E1F3DA2
Rated voltage 220V
Rated current 16A
MAX current 16A
MAX power ∇
Safety ∇
LOGO ∇
Maker SQ-ELECTRONICS
