SMP-D21602

  • Product Series: Monitor
  • Receptacle Type: outputs-IEC 60320-C13(lockable). outputs-IEC 60320-C19
  • Outlets: Twelve outlets-IEC 60320-C13(lockable);four outlets-IEC 60320-C19
  • Input: IEC60309 & cable
No. Item Basic description
1 Product Series Monitor
2 Receptacle Type outputs-IEC 60320-C13(lockable). outputs-IEC 60320-C19
3 Outlets Twelve outlets-IEC 60320-C13(lockable);four outlets-IEC 60320-C19
4 Input IEC60309 & cable
5 Installation Vertical
6 Input plug IEC60309 IP4463A/230VAC 2P+E industrial connector
7 Monitor module LED current display ;Current overload alarm; Hot plug
8 Protect module N
9 Housing color Yellow
10 Specifications of input cable 3*6mm2 ZA RVV -3m long cable(black)

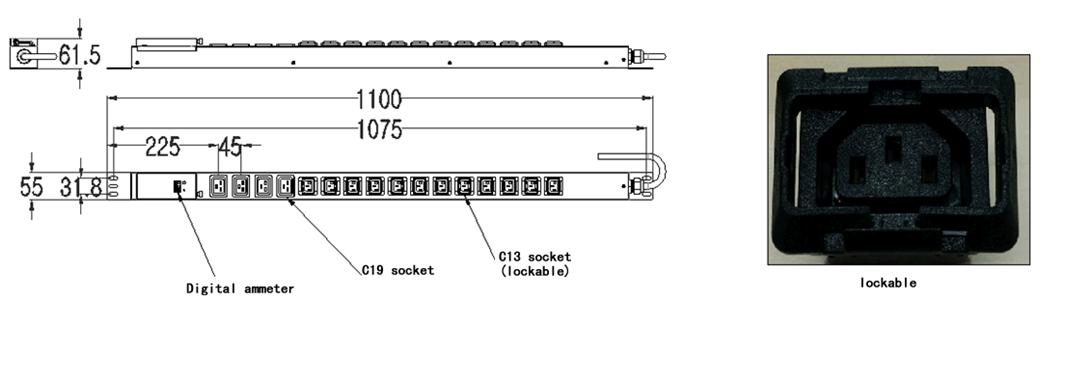

11 Product dimension Length x width x high =1100 x 55 x 61.5mm
12 Mounting hole center distance1075mm
13 Housing length 1100mm
14 Accessories Female IEC60309
15 Product making Product name Rack PDU
Model SQ16(12E4e)1F7DB3
Rated voltage 240V DC
Rated current 40A
MAX current 40A
MAX power ∇
Safety ∇
LOGO ∇
Maker SQ-ELECTRONICS
