SBP-Y23001

  • Product Series: Basic
  • Receptacle Type: GB1002 10A  16A
  • Outlets: 18 Outlets- GB1002 16A  &  12 Outlets- GB1002 10A
  • Input: IEC 60309 & cable
No. Item Basic description
1 Product Series Basic
2 Receptacle Type GB1002 10A  16A
3 Outlets 18 Outlets- GB1002 16A  &  12 Outlets- GB1002 10A
4 Input IEC 60309 & cable
5 Installation vertical
6 Input plug IEC60309 IP44 16A/250VAC 4P+E industrial connector
7 Monitor module N
8 Protect module N
9 Housing color Black
10 Specifications of input cable 5*4mm^2 ZA RVV -2m long cable(black)

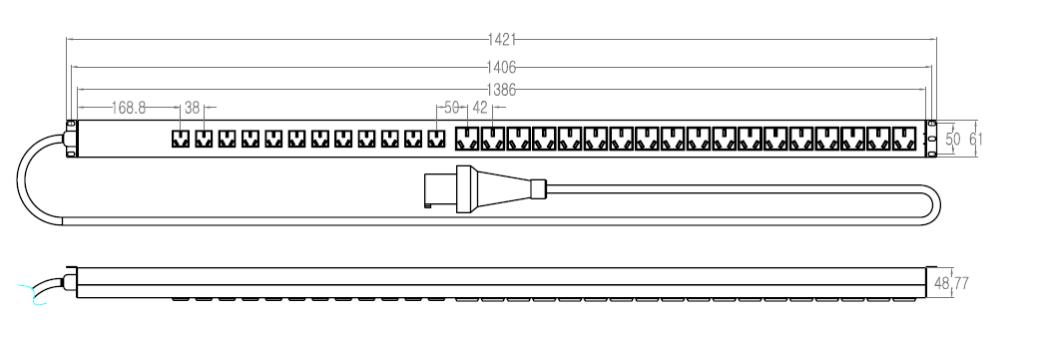

11 Product dimension Length x width x high =1421 x 61 x 48.7mm
12 Mounting hole center distance1406mm
13 Housing length 1386mm
14 Accessories Female IEC60309
15 Product making Product name PDU
Model SQ30(18g12G)1C00A1
Rated voltage 380V three phase AC
Rated current 16A each phase
MAX current 16A each phase
MAX power
Safety N
LOGO
Maker SQ-ELECTRONICS
