SBP-Y22406

  • Product Series: Basic
  • Receptacle Type: GB1002 10,GB1002 16A
  • Outlets: 22 outlets- GB1002 10A,2 outlets-GB1002 16A
  • Input: IEC60309 & Cable
No. Item Basic description
1 Product Series Basic
2 Receptacle Type GB1002 10,GB1002 16A
3 Outlets 22 outlets- GB1002 10A,2 outlets-GB1002 16A
4 Input IEC60309 & Cable
5 Installation Vertical Inverse Installation
6 Input plug IEC60309 IP44 16A/400V AC 3P+N+PE industrial connector
7 Monitor module N
8 Protect module N
9 Housing color Black
10 Specifications of input cable 5*4mm^2 ZA RVV -2m long cable(black)

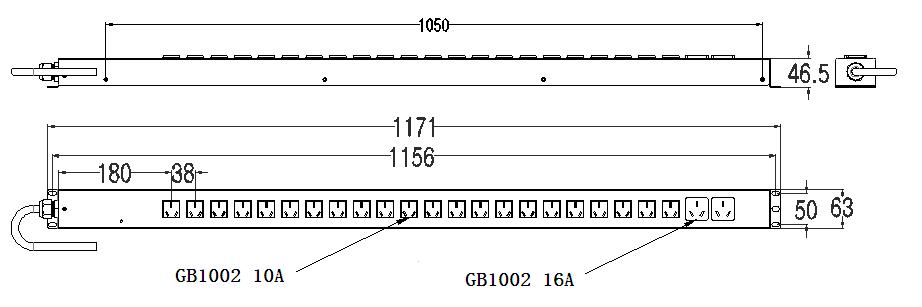

11 Product dimension Length x width x high =1171x63x46.5mm
12 Mounting hole center distance1156mm
13 Housing length 1171mm
14 Accessories Female IEC60309
15 Product making Product name PDU
Model SQ24(22G2g)1C30A1
Rated voltage 380V three phase AC
Rated current 16A each phase
MAX current 16A each phase
Safety N/A
Maker SQ-ELECTRONICS
