SBP-A41801

  • Product Series: Basic
  • Receptacle Type: GB1002 10A
  • Outlets: Eighteen
  • Input: IEC60309
No. Item Basic description
1 Product Series Basic
2 Receptacle Type GB1002 10A
3 Outlets Eighteen
4 Input IEC60309
5 Installation Vertical Reverse Installation
6 Input plug IEC60309 IP44 16 A/250V AC 2P+E
7 Monitor module Power Indicator
8 Protect module 10KA Built-in Lightning Protector
9 Housing color Black
10 Specifications of input cable 3*4mm^2 ZA RVV -2m long cable(black)

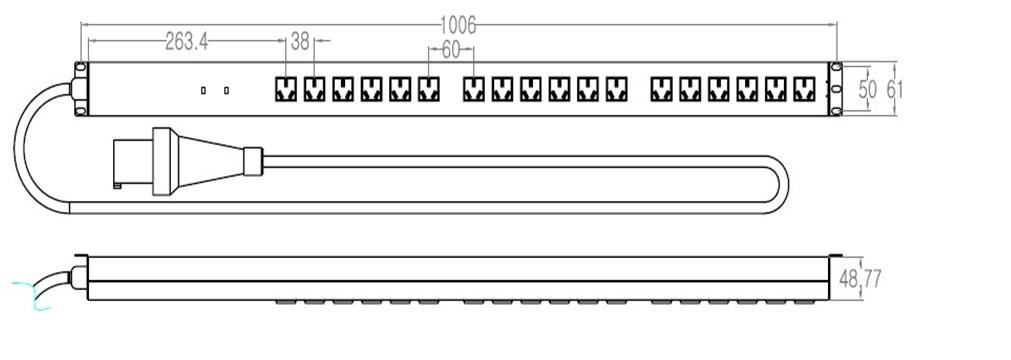

11 Product dimension Length x width x high =1201 X 61 X48.7mm
12 Mounting hole center distance1006mm
13 Housing length 986mm
14 Accessories Female IEC60309
15 Product making Product name Rack PDU
Model SQ18G1F30A2
Rated voltage 220V AC
Rated current 16A
MAX current 16A
MAX power
Safety
LOGO
Maker SQ-ELECTRONICS
