SBP-A32001

  • Product Series: Basic
  • Receptacle Type: IEC 60320-C13(Lockable)、IEC 60320-C19
  • Outlets: Sixteen outlets- IEC 60320-C13(Lockable),four outlets
No. Item Basic description
1 Product Series Basic
2 Receptacle Type IEC 60320-C13(Lockable)、IEC 60320-C19
3 Outlets Sixteen outlets- IEC 60320-C13(Lockable),four outlets- IEC 60320-C19
4 Input IEC 60309 & cable
5 Installation Vertical Reverse Installation
6 Input plug IEC60309 IP44 32A/230V AC 2P+PE industrial connector
7 Monitor module N
8 Protect module 1*32A/P  AC air switch
9 Housing color Black
10 Specifications of input cable 3*6mm^2 ZA RVV -2m long cable(black)

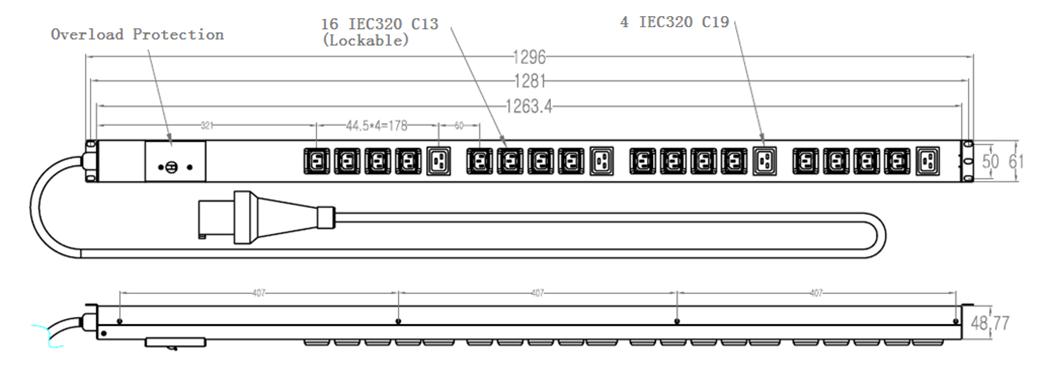

11 Product dimension Length x width x high =1296X61X70.8mm
12 Mounting hole center distance1281mm
13 Housing length 1296mm
14 Accessories Female IEC60309
15 Product making Product name PDU
Model SQ20(16E4e)1F6BA2
Rated voltage 220V AC
Rated current 32A
MAX current 32A
MAX power
Safety
LOGO
Maker SQ-ELECTRONICS
