SBP-A23002

  • Product Series: Basic
  • Receptacle Type: IEC 60320-C13,IEC 60320-C19
  • Outlets: 26 Outlets-IEC 60320-C13 & 4 Outlets-IEC 60320-C19
  • Input: reserved terminal connector
No. Item Basic description
1 Product Series Basic
2 Receptacle Type IEC 60320-C13,IEC 60320-C19
3 Outlets 26 Outlets-IEC 60320-C13 & 4 Outlets-IEC 60320-C19
4 Input reserved terminal connector
5 Installation Vertical reverse, free tools hanging installation
6 Input plug N
7 Monitor module N
8 Protect module N
9 Housing color Black
10 Specifications of input cable

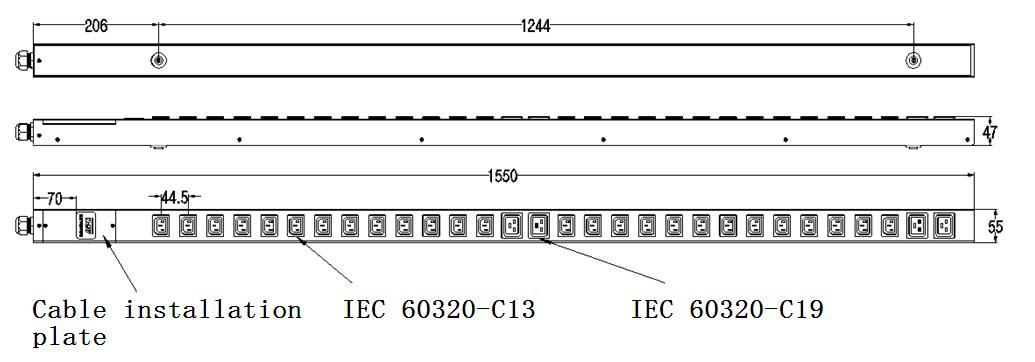

11 Product dimension Length x width x high =1550 x 55 x 47 mm
12 Mounting hole center distance1244mm
13 Housing length 1550mm
14 Accessories Mounting lugs
15 Product making Product name PDU
Model SQ30(26E4e)5060A2
Rated voltage 220V DC
Rated current 32A
MAX current 32A
MAX power
Safety N/A
LOGO
Maker SQ-ELECTRONICS
