SBP-A21803

  • Product Series: Basic
  • Receptacle Type: GB1002
  • Outlets: Twelve outlets-GB1002 10A ,six outlets-GB1002 16A
  • Input: IEC60309 & cable
  • Installation: Vertical Reverse Installation
No. Item Basic description
1 Product Series Basic
2 Receptacle Type GB1002
3 Outlets Twelve outlets-GB1002 10A ,six outlets-GB1002 16A
4 Input IEC60309 & cable
5 Installation Vertical Reverse Installation
6 Input plug IEC60309 IP44 32A/230VAC 2P+E industrial connector
7 Monitor module N
8 Protect module N
9 Housing color Black
10 Specifications of input cable 3*6mm^2 ZA RVV -2m long cable(black)

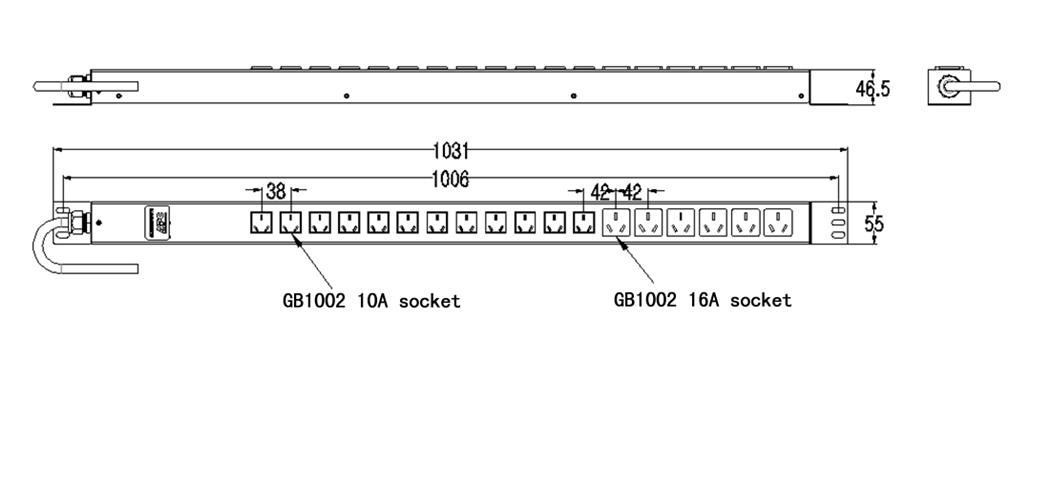

11 Product dimension Length x width x high =1031 x 55 x 46.5mm
12 Mounting hole center distance1006mm
13 Housing length 1031mm
14 Accessories Female IEC 60309
15 Product making Product name Rack PDU
Model SQ18(12G6g)1F60A2
Rated voltage 220V AC
Rated current 32A
MAX current 32A
MAX power
Safety
LOGO
Maker SQ-ELECTRONICS
