SBP-A21401

  • Product Series: Basic
  • Receptacle Type: Outputs IEC 60320-C13,Outputs IEC 60320-C19
  • Outlets: Twelve outlets-IEC 60320-C13,two outlets-IEC 60320-C19
  • Input: IEC 60309 & Cable
No. Item Basic description
1 Product Series Basic
2 Receptacle Type Outputs IEC 60320-C13,Outputs IEC 60320-C19
3 Outlets Twelve outlets-IEC 60320-C13,two outlets-IEC 60320-C19
4 Input IEC60309 & cable
5 Installation Vertical
6 Input plug IEC60309 IP44 32A/230VAC 2P+E industrial connector
7 Monitor module N
8 Protect module N
9 Housing color Black
10 Specifications of input cable 3*6mm^2 ZA RVV -1.5m long cable(black)

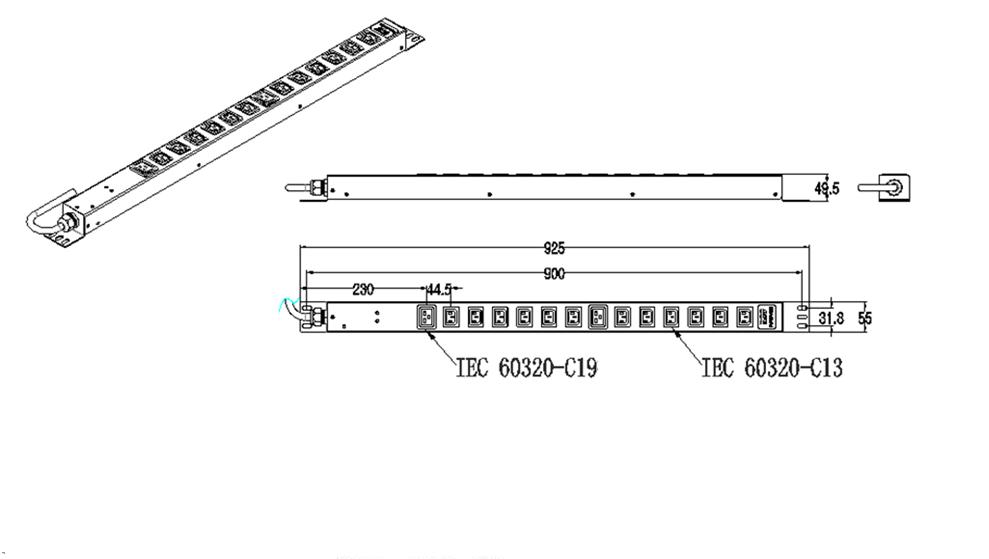

11 Product dimension Length x width x high =1031 x 55 x 46.5mm
12 Mounting hole center distance900mm
13 Housing length 925mm(Contains hangers)
14 Accessories Female industrial connectors
15 Product making Product name Rack PDU
Model SQ14(12E2e)1F60A2
Rated voltage 220V AC
Rated current 32A
MAX current 32A
MAX power 32A
Safety N/A
LOGO
Maker SQ-ELECTRONICS
