SBP-A21002

  • Product Series: Basic
  • Receptacle Type: outputs-IEC 60320-C13(Lockable)、outputs-GB1002 10A
  • Outlets: Five outlets-IEC 60320-C13(Lockable),five outlets-GB1002 10A
  • Input: IEC60309
No. Item Basic description
1 Product Series Basic
2 Receptacle Type outputs-IEC 60320-C13(Lockable)、outputs-GB1002 10A
3 Outlets Five outlets-IEC 60320-C13(Lockable),five outlets-GB1002 10A
4 Input IEC60309 & Cable
5 Installation 1U horizontal
6 Input plug IEC60309 IP44 16A/230V AC 2P+PE industrial connector
7 Monitor module N
8 Protect module N
9 Housing color Black
10 Specifications of input cable 3*4mm^2 ZA RVV -2m long cable(black)

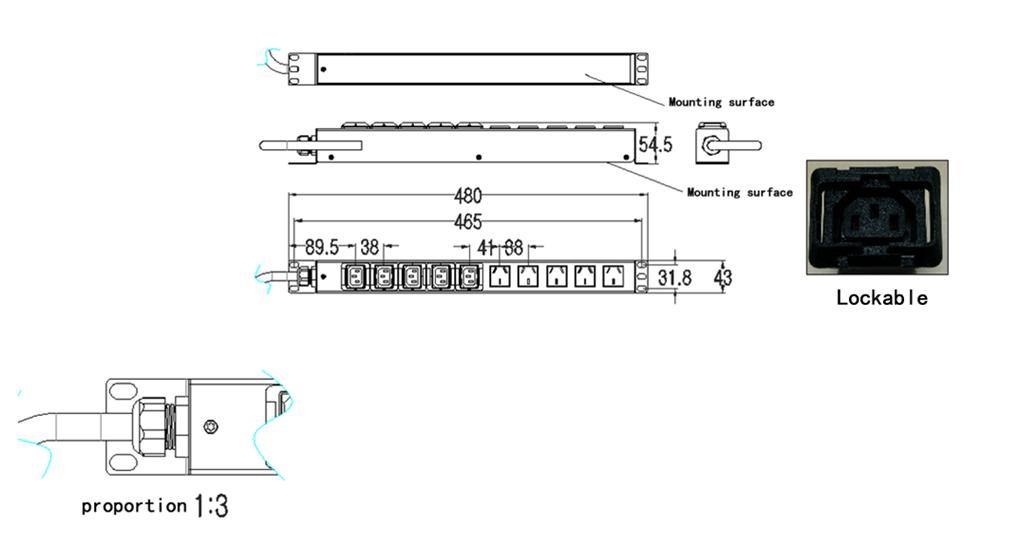

11 Product dimension Length x width x high =480 x 43 x 54.5mm
12 Mounting hole center distance465mm
13 Housing length 480mm
14 Accessories Female IEC60309
15 Product making Product name Rack PDU
Model SQ10(5E5G)1F30A2
Rated voltage 220V AC
Rated current 16A
MAX current 16A
Safety N/A
Maker SQ-ELECTRONICS
