SBP-A12401

  • Product Series: Basic
  • Receptacle Type: GB1002 16A
  • Outlets: 24 outlets- GB1002 16A
  • Input: IEC 60309 & cable
  • Installation: Vertical Reverse Installation
No. Item Basic description
1 Product Series Basic
2 Receptacle Type GB1002 16A
3 Outlets 24 outlets- GB1002 16A
4 Input IEC 60309 & cable
5 Installation Vertical Reverse Installation
6 Input plug IEC60309 IP44 32A/250V AC 2P+E industrial connector
7 Monitor module N
8 Protect module N
9 Housing color Black
10 Specifications of input cable 3*6mm^2 ZA RVV -2m long cable(black)

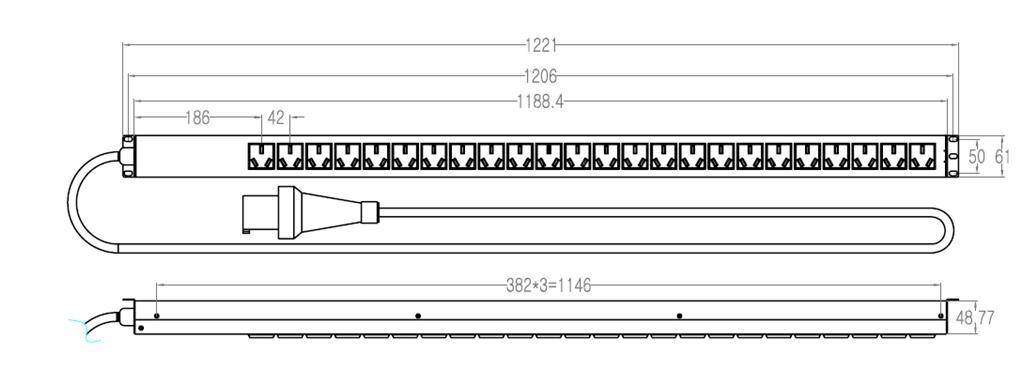

11 Product dimension Length x width x high =1221X61X48.7mm
12 Mounting hole center distance1206mm
13 Housing length 1188.4mm
14 Accessories Female IEC 60309
15 Product making Product name PDU
Model SQ24g1F60A2
Rated voltage 220V
Rated current 32A
MAX current 32A
MAX power
Safety N
LOGO
Maker SQ-ELECTRONICS
